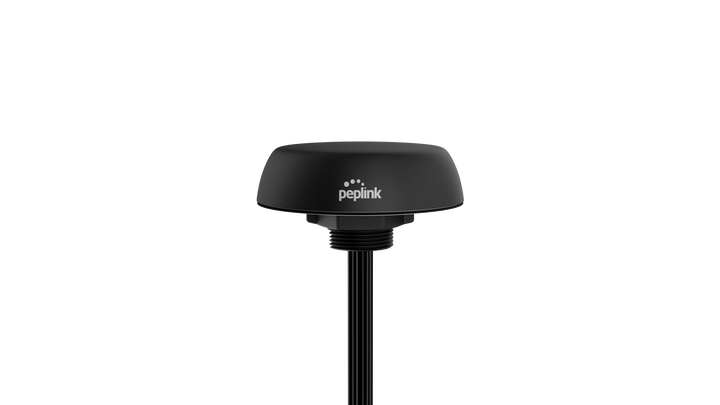

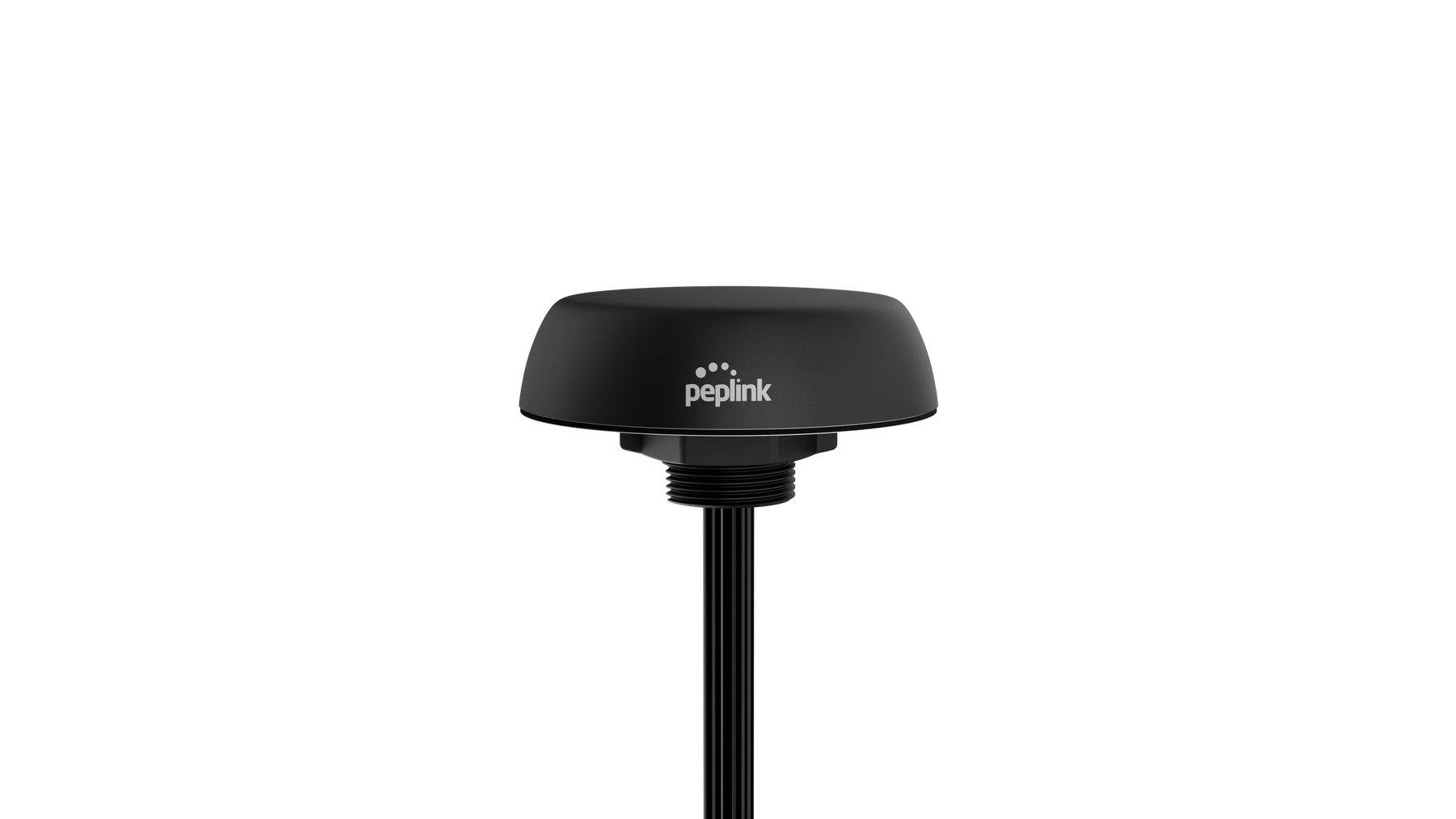

Mobility 40G Antenna (SMA Male / 6.5 ft) 5G Only NO Wi-Fi
The Mobility 40G is a 5G-ready, 4x4 MIMO multi-band antenna built for land-based mobile applications. Engineered for high bandwidth and rock-solid reliability, it covers a wide range of global cellular frequencies and includes a high-gain GPS antenna for precision location tracking — all in a rugged, low-profile IP68 housing.

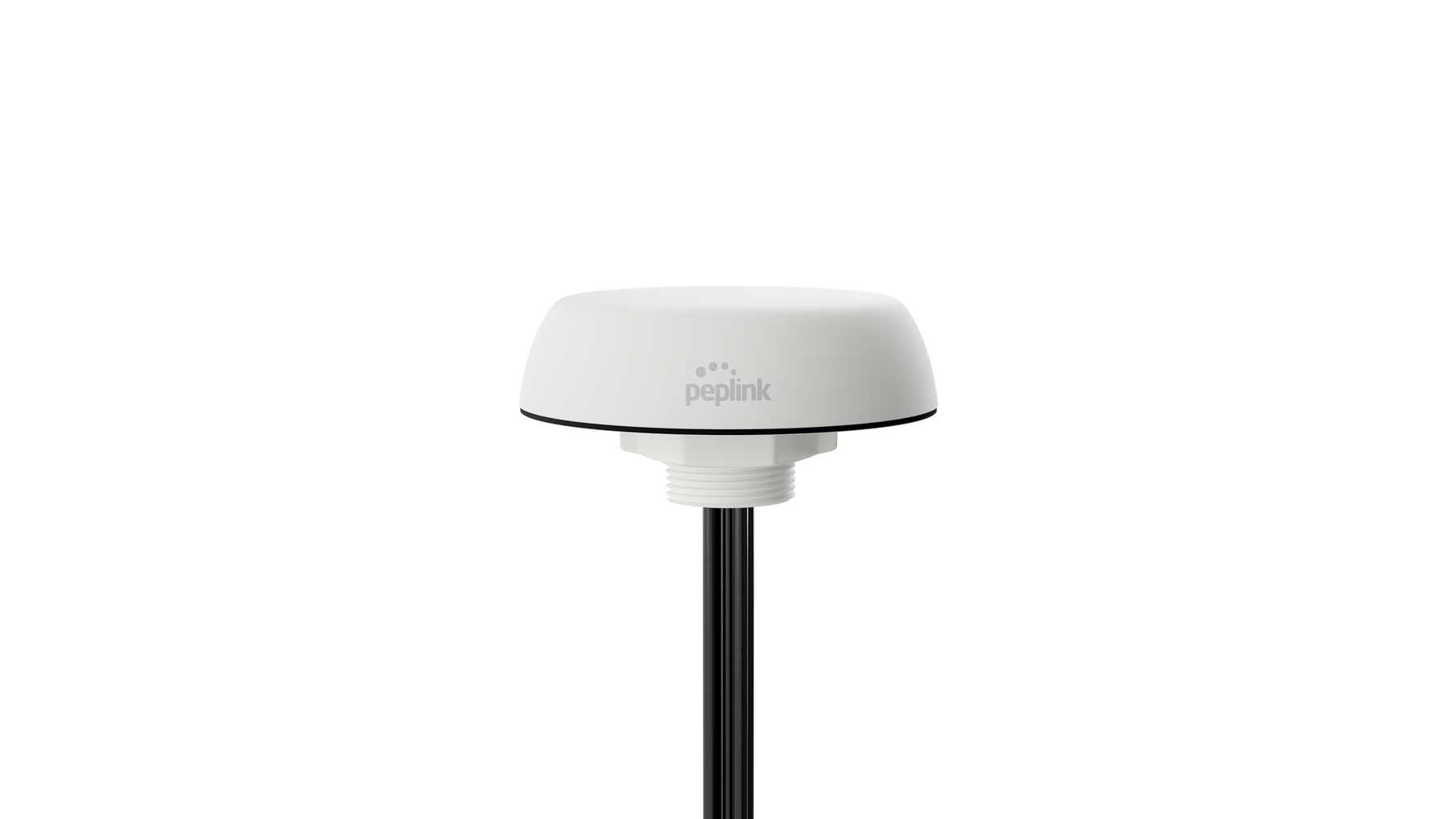

Available in Black and White (6.5 ft / 2 m cable) to match your vehicle or installation.
Key Features
- 4x4 MIMO 5G ready — high-bandwidth cellular performance across global networks
- Ultra-wide bandwidth — 600–6000 MHz covering LTE bands B1–B86 and 5G bands n1–n99
- B71 support — optimized for U.S. low-band 5G coverage
- Integrated GPS — high-gain active GNSS (28 dB LNA) for accurate location tracking
- Compact, low-profile design — only 1.42" tall and 5.12" in diameter
- Durable UV-stable housing — built to last in harsh outdoor conditions
- IP68 rated — fully sealed against dust and water
- TAA Compliant
Antenna Performance
Cellular (4x4 MIMO)
- 0.3 dBi @ 617–960 MHz
- 5.1 dBi @ 1710–2700 MHz
- 5.8 dBi @ 3400–4200 MHz
- 7.0 dBi @ 4900–6000 MHz
GPS
- 0.5 dBi @ 1575 MHz / 1.6 dBi @ 1602 MHz
- LNA Gain: 28 ±3 dB
- Frequency range: 1561–1602 MHz
Dimensions
- Height: 1.42" / 36 mm (spigot not included)
- Diameter: 5.12" / 130 mm
- Packaged: 8.90" x 8.46" x 4.29" (226 x 215 x 109 mm)
- Mounting hole: 1 11/16" / 43 mm
- Max panel thickness: 19/32" / 15 mm
Environmental & Compliance
- IP68 rated
- Operating temperature: -40°F to 176°F (-40°C to 80°C)
- Wind survival: up to 235 mph / 379 km/h (with proper flush mounting)
- UL 94 HB enclosure flammability
- UV resistant (UL 746C, F1 long-term exposure)
- Salt spray tested (MIL-STD 810F / ASTM B117)
- Compliance: RoHS, REACH, WEEE
Official Peplink data sheet — full specs, ports, throughput, and regulatory info.
